Introduction
4 Axis Robotic Arm is designed for small mobile robots for object manipulation. It can grip objects up to 60mm wide with the griping force of 250gms. Arm has reach of 29cm. It can lift the payload up to 155gms. First 3 axis contains NRS-995 dual bearing heavy duty metal gear servo motors and remaining two motors are NRS-585 for smoother operation. Axis 2 and 3 enables gripper to maintain its angle constant with the surface while moving up and down.
Robotic Arm can perform Left, Right, Up and Down motions, while keeping gripper parallel to the surface. Gripper part performs Twist motion and Gripping action.

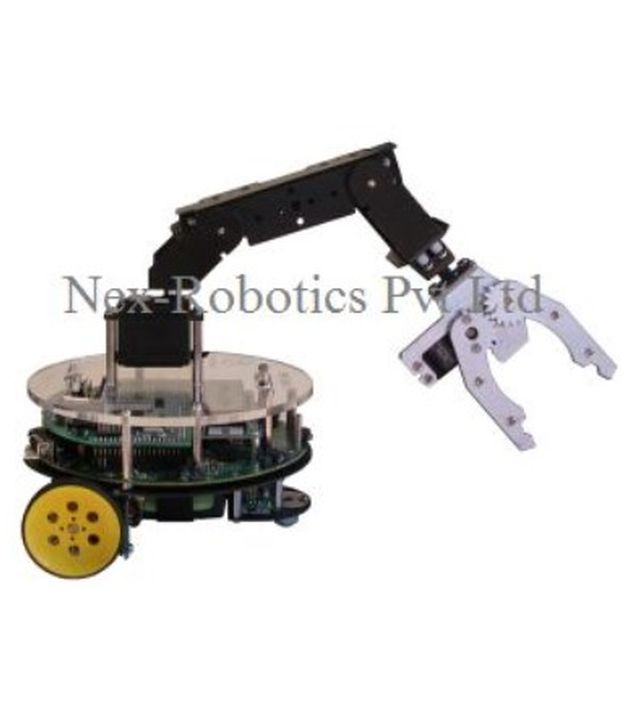

Note: Base Robot shown in the photo is not included.
Important: Robotic Arm will require current up to 5 Amps. Insure that your hardware can supply sufficient amount of current for smoother operation of the arm.
Specifications
- Number of Axis: 4 + Gripper
- Gripping force: 250gms (Maximum)
- Gripping jaw length: 43mm
- Gripping jaw width: 60mm
- Payload: 155gms
- Weight: 455gms (Including 3 NRS-995 and 2 NRS-585 servo motors)
- Operating voltage: 5V to 6V
- Reach: 29cm
Package Contains
- 4 Axis Robotic Arm fully assembled, Ready to use.
