Gripper Kit For Fire Bird V Robot
₹3,729(Excl of 18% GST)

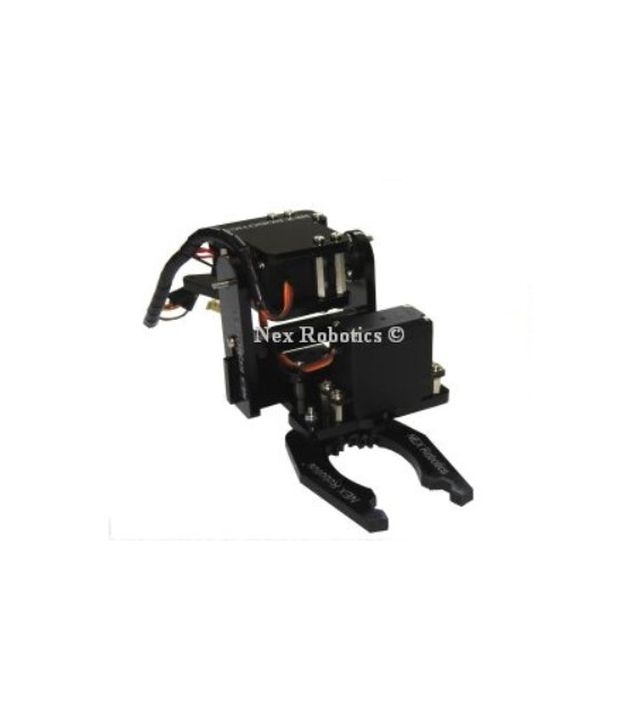

This is light weight gripper designed for mobile robotics applications. It can grip objects with the size up to 30mm. Gripper is made up of Acrylic parts and comes fully assembled and ready to use. Because of its mechanical link design, gripper jaws moves almost parallel with respect to each other while gripping. Gripper comes with two high quality dual bearing NRS-585 Servo motors. One of the servo motor is attached for gripping action and the second servo motor is attached for the up and down action.
The Interfacing details and application code is included in Documentation CD provided along with the kit.
Specifications
- Gripping size: 30mm
- Gripping jaw Thick: 5mm
- Weight: 241gms
- Operating voltage: 5V to 6V
Package Contents
- Gripper Arm Assembly (Qty 1)
- M3 Bolts 12mm (Qty 2)
- M3 Nut (Qty 2)
- Documentation CD (Qty 1)

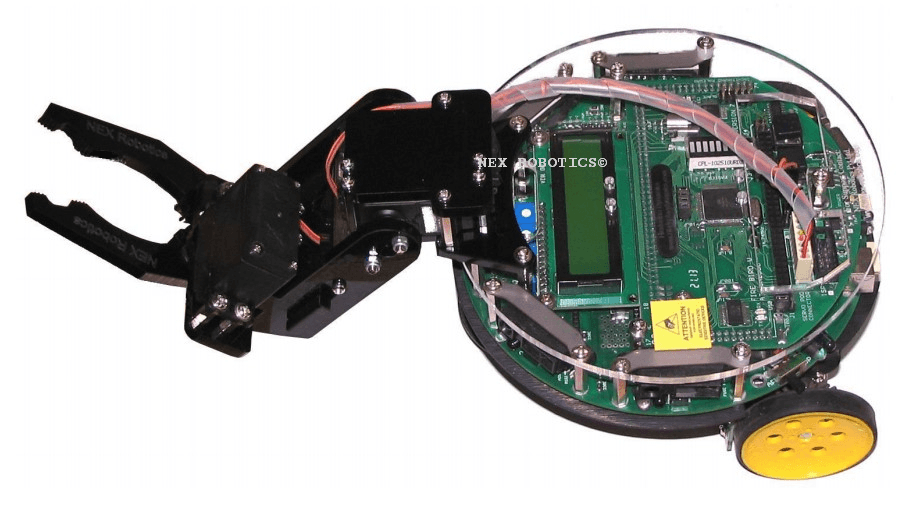

Gripper Kit On Firebird V Robot
